s5000LED FOR DROPRO EL SERIES READOUTS

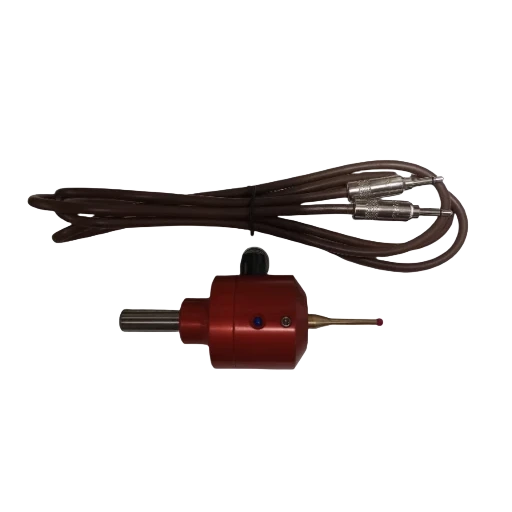

The s5000LED is a CNC probe design with normally closed internal switch contacts. When probe comes in contact with any work surface the internal switch opens and light comes on.  Accuracy when probing locations is ~.0005 and repeat trigger ability is +-.0002″.  This probe works with DROPRO EL SERIES READOUTS, cable included.

Comes with 1/8″ ruby stylus tip, and DRO PRO cable for the EL series readouts.

Inquire about international shipping if you need it.

• BLUE LED

• 6061 ANODIZED ALUMINUM

• 3/8″ HARDENED SHANK DIAMETER

• 4 CONCENTRICITY SETTING SCREWS

• 1/8″ RUBY BALL PROBE TIP

• 1.5″ BODY DIAMETER

• 3.25″ BODY GAGE LENGTH

• 1.25″ STYLUS LENGTH

• STANDARD M3 X .5mm STYLUS TIP THREAD

• 4ft DROPRO EL SERIES READOUT CABLE (NEW FOR SPRING 2025)

• 0.250″ OVER TRAVEL PROTECTION DISTANCE
