s5000LED TTS Wired CNC Probe

s5000LED TTS Wired CNC Probe

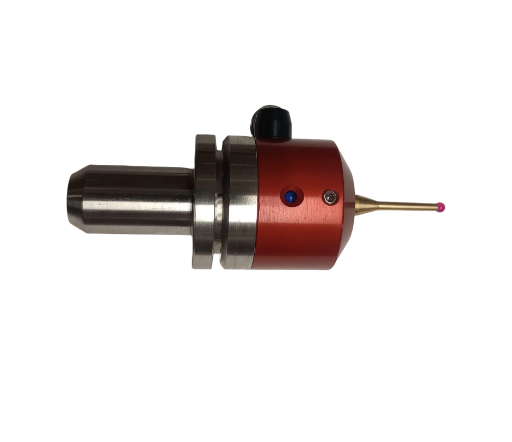

The s5000LED TTS is a CNC probe design with normally closed internal switch contacts. When probe comes in contact with any work surface the internal switch opens and light comes on.  Accuracy when probing locations is ~.0005 and repeat trigger ability is +-.0002″.  This probe works with path piolt systems on the Tormach machines.

This product is compatible with 1100M, 770M, PCNC 440, PCNC 1100, and PCNC 770   machines. For use with Tormach mills only. Ask about other cables for your non Tormach machines using the TTS tooling system.

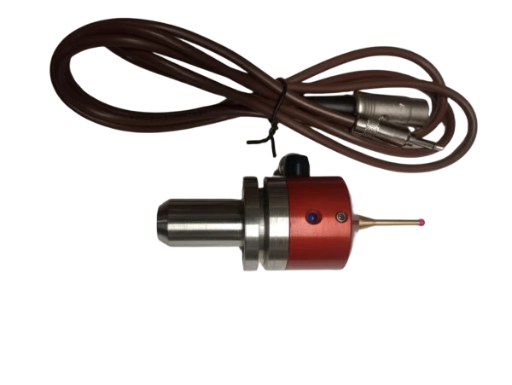

Comes with stainless steel TTS compatible shank, 1/8 inch diameter ruby ball probe stylus, and Tormach compatible 5pin cable.

This probe can work with Mach3/4, Dynomotion, Centroid(acorn and others), Mesa, Masso, and other CNC control systems with probing routines. Inquire before purchase about the non Tormach compatible cable options.

Inquire about international shipping if you need it.

• BLUE LED

• 6061 ANODIZED  ALUMINUM  new feature

• 3/4 Stainless Steel TTS COMPATIBLE SHANK

• 4 CONCENTRICITY SETTING SCREWS

• 1/8″ RUBY BALL PROBE TIP

• 1.5″ BODY DIAMETER

• 3.00″ BODY GAGE LENGTH

• 1.25″ STYLUS LENGTH

• STANDARD M3 X .5mm STYLUS TIP THREAD

• NEW 1/8(3.5MM) JACK CONNECTOR**(NEW FOR SPRING 2025)

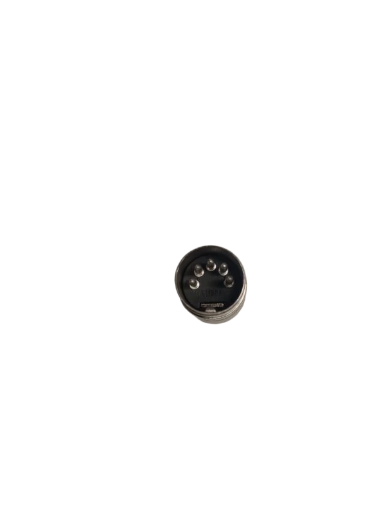

• TORMACH 5 PIN CABLE

• .250″ OVER TRAVEL PROTECTION DISTANCE
