s5000LED Wired CNC Probe

s5000LED Wired CNC Probe

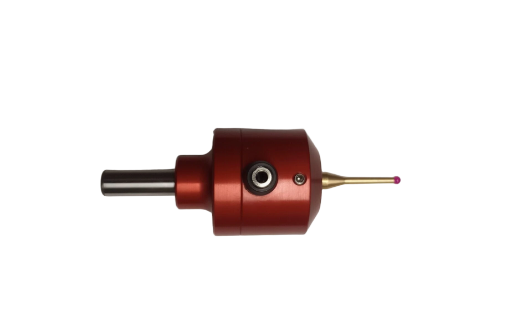

The s5000LED is a CNC probe design with normally closed internal switch contacts. When probe comes in contact with any work surface the internal switch opens and light comes on.  Accuracy when probing locations is ~.0005 and repeat trigger ability is +-.0002″.  This probe works with Mach3/4, Dynomotion, Centroid(acorn and others), Mesa, Masso, and other CNC control systems with probing routines.

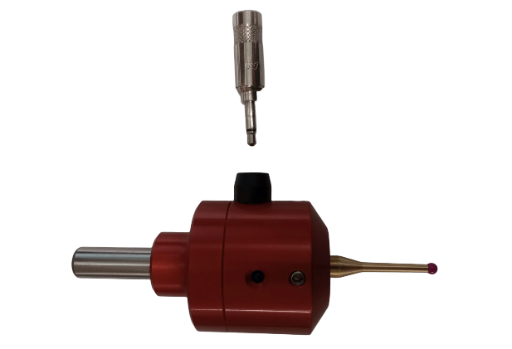

Comes with probe connector for making cable as you need it.

Inquire about international shipping if you need it.

• BLUE LED

• 6061 ANODIZED ALUMINUM  new feature

• 3/8″ HARDENED SHANK DIAMETER

• 4 CONCENTRICITY SETTING SCREWS

• 1/8″ RUBY BALL PROBE TIP

• 1.5″ BODY DIAMETER

• 3.25″ BODY GAGE LENGTH

• 1.25″ STYLUS LENGTH

• STANDARD M3 X .5mm STYLUS TIP THREAD

• NEW 1/8(3.5mm) JACK CONNECTOR  (NEW FOR SPRING 2025)

• .250″ OVER TRAVEL PROTECTION DISTANCE
