s5100 Wireless CNC Probe

Wireless IP67 CNC Spindle Probe – Compact, Sealed, and Ultra-Precise

$845.00

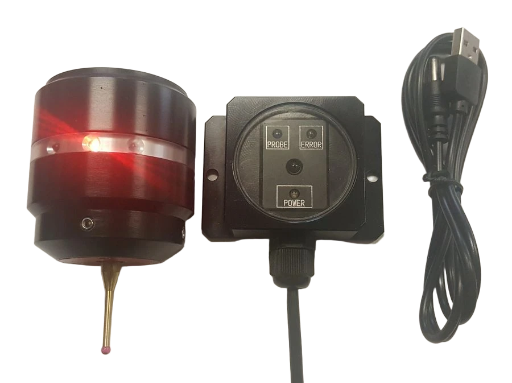

s5100 Wireless CNC Probe

The s5100 Wireless CNC Probe is a compact, IP67-rated infrared wireless spindle probe designed for milling centers. It operates on a built-in 3.8V rechargeable LIPO battery and comes with a USB charging cable. With bore location accuracy to .0002" and repeatability to .0001", this probe brings superior precision to your CNC workflow.

Inquire about International shipping.

The receiver installs easily inside your equipment with simple three-wire connections:

  • Red: +5V

  • Black ground

  • Green: signal input

This DrewTronics CNC probe is equipped as follows:

  • IP67 SEALED UNIT new feature

  • RED/BLUE STATUS LED

  • 5 VOLT POWERED RECEIVER

  • 5-24V TOLERANT LOGIC OUTPUT (SINKING)

  • 6061 ANODIZED ALUMINUM BODY

  • 7/8-20 MOUNTING THREAD

  • 4 CONCENTRICITY SETTING SCREWS

  • 1/8″ RUBY BALL PROBE TIP

  • 2.25″ BODY DIAMETER

  • 3.75″ BODY GAGE LENGTH

  • 1.25″ STYLUS LENGTH

  • STANDARD M3 X .5mm STYLUS TIP THREAD

  • 0.250″ OVER TRAVEL PROTECTION DISTANCE

  • 5.5mm CHARGE PORT AND USB CABLE

  • HEAT TREATED SS440c  INTERNAL ALIGNMENT STAGE (NEW IN 2025)
