G0704 Deluxe Power Drawbar and Spindle Belt Drive upgrade Kit

G0704 Deluxe Spindle Kit Belt Drive, Spacer and Power Drawbar Kit

The G0704 Deluxe Spindle Kit Belt Drive, Spacer and Power Drawbar Kit is a major upgrade for your Grizzly G0704 benchtop milling machine.  It offers several improvements that will transform you mill into a small production work horse.  below are the key benefits of this update:

Features and Benefits:

• Smooth Multi-V rib Belt Drive Conversion

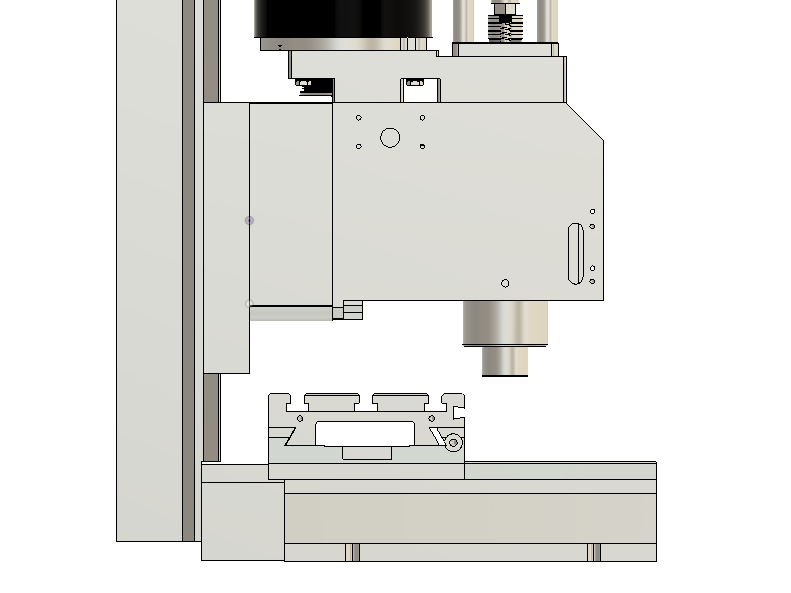

• Head and Column Spacers for increased Travel Potential, up to 9.5" of Y travel

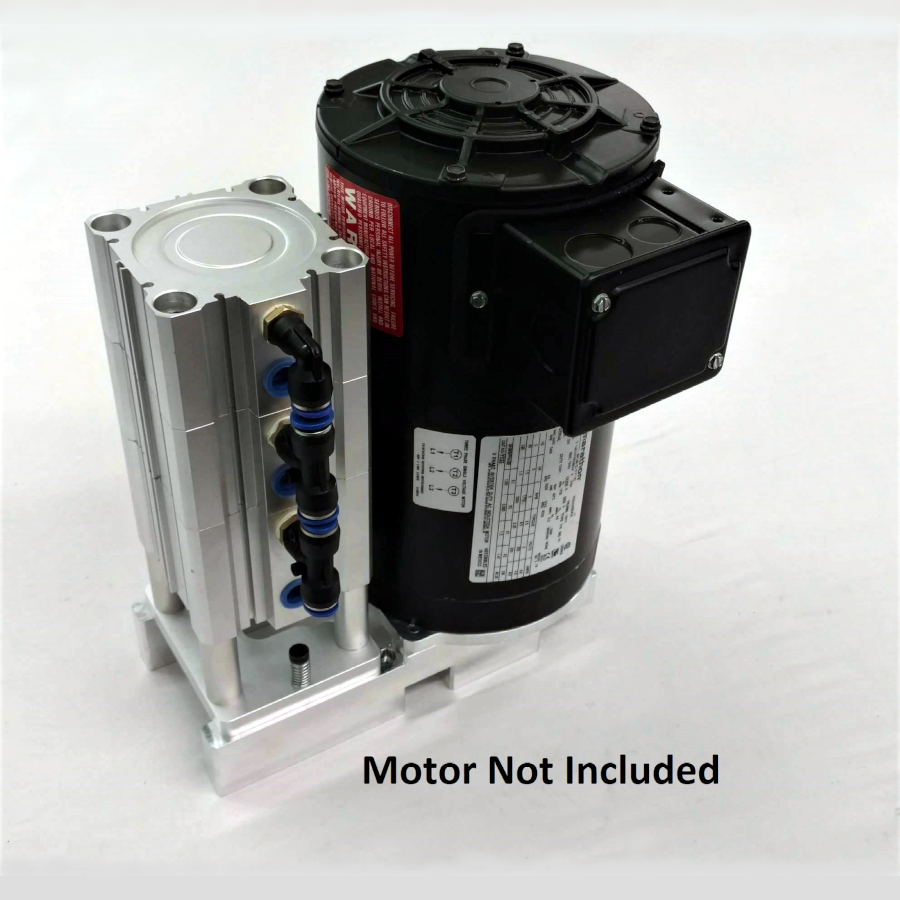

• Pneumatic Power Drawbar system for use with TTS Tool Holders

• Increased Spindle Speed to 6000rpm when configured properly

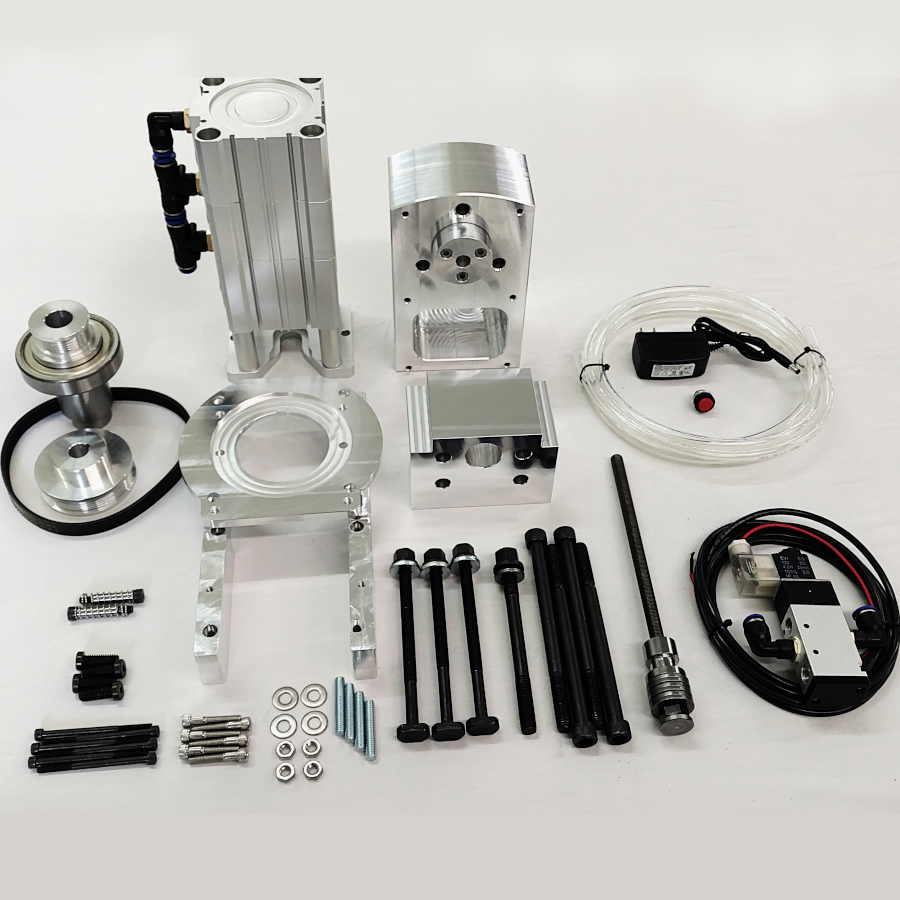

• All required Hardware Provided for installing the Kit

• 1 Piece stainless steel Precision spindle pulley drive tube

• Upgraded Precision Nachi Drive Tube bearings Preinstalled

• Provisions for use with industrial 3ph AC Spindle Motor (customer sourced)

User Supplied Requirements:

• 1800rpm Inverter Duty, 4 pole, 143TC, 145TC or 56C 3ph AC Motor, 1.0 - 1.5hp recommended

• Select your motors shaft diameter of 5/8" or 7/8" at checkout

• Shop air between 90-150psi (the higher the better of this range for heavy cutting)

• Any and all motor controller (VFD) and wiring for connecting the user supplied motor

Recommended Components NOT included in this kit:

• 3/4in TTS Collet for use with TTS Style Tool Holders (offered separately in our webstore)

• Nachi Precision Tapered Roller Spindle Bearings (offered separately in our webstore)

• Kluber Isoflex 15 NBU High temp spindle bearing grease for the above bearings

• Any Tools required for installing the kit and other upgrades.

If you have any question regarding the kit, please feel free to reach out with your questions regarding the kit!
